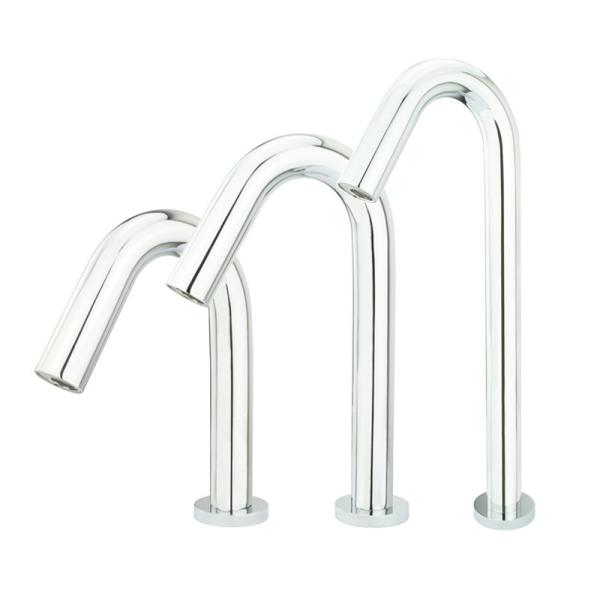

Infrared Sensor Faucet

T Seiries of infrared sensor faucet specification

01. Two power supply modes: DC (4 x AA alkaline batteries) or/and AC (100V~240V 2-phase) with power back protection.
02. Stand-by current: <20uA.
03. Working current: < 500mA.
04. Control mode: infrared reflectance mode.
05. Water temperature: ≤75°C.
06. Working water pressure: 0.05MPa~0.8Mpa.
07. Maximum torque: 10 N·M (The control valve’s thread to connect flexible hose can withstand 10 N·M torque within 60s, no cracks and no damage to the valve).
08. Control distance: It is set automatically according to the reflected intensity at the first power-on. The control distance value is set to 8cm~14cm normally, the deviation of control distance doesn’t exceed ±10%, when it is set
09. Opening response time≤0.3s, closing response time: 0.5s ~1.0s.
10. Consumed power in stand-by: < 0.12mW; consumed power in working < 3W.
11. Power-off protection: the solenoid valve will shut-off automatically in case the power fails & the faucet is on working state.
12. Low-voltage protection: the red indicator keeps flashing once per second to remind the user to change the batteries when the voltage drops to 4.5V. The solenoid valve will shut-off when the voltage drops to 4V.
13. Overtime protection: the solenoid valve will shut-off automatically when the faucet keeps on working for 1 minute.
14. Flow rate: 5.5 l/m at flowing water pressure 0.1Mpa.
15. Maximum hydrostatic pressure: ≤1.6Mpa, no permanent deformation and leakage duration 60s.
16. Life time: ≥300,000 times
17. Waterproof level: IP65
18. Moisture resistance: the metal parts in the battery box can pass the moisture resistance test according to CJ/T 194-2014
20. Corrosion resistance: the coating can pass NSS 200 hs corrosion test according to ISO 3768.
21. Guarantee: 5 years.
